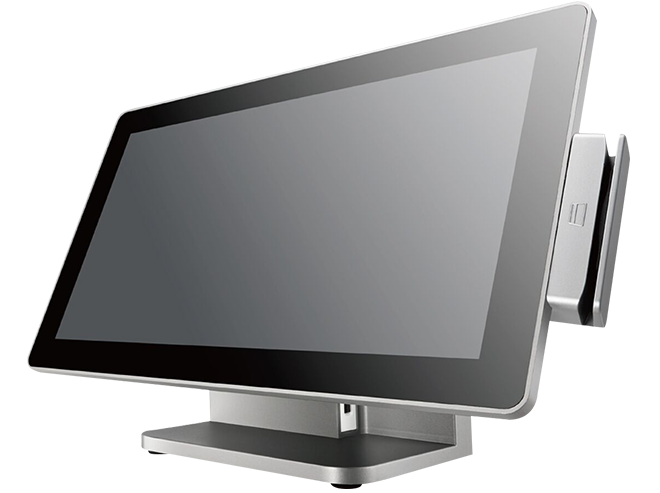

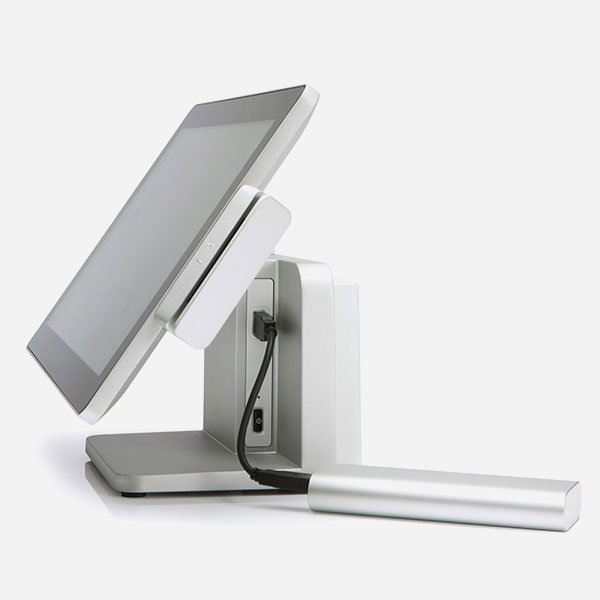

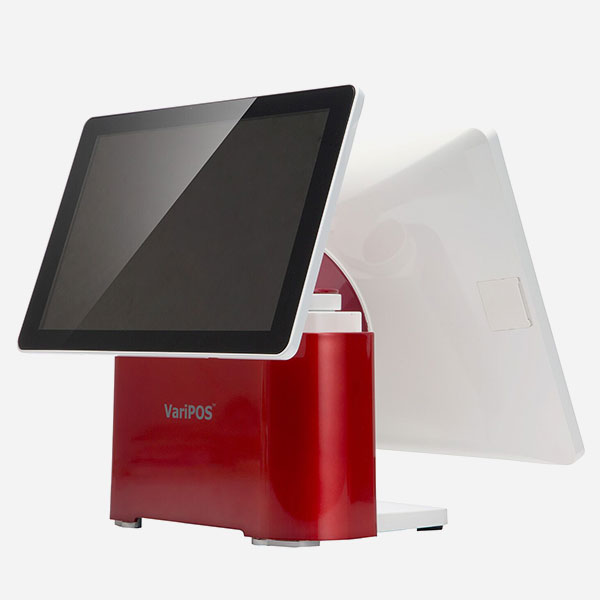

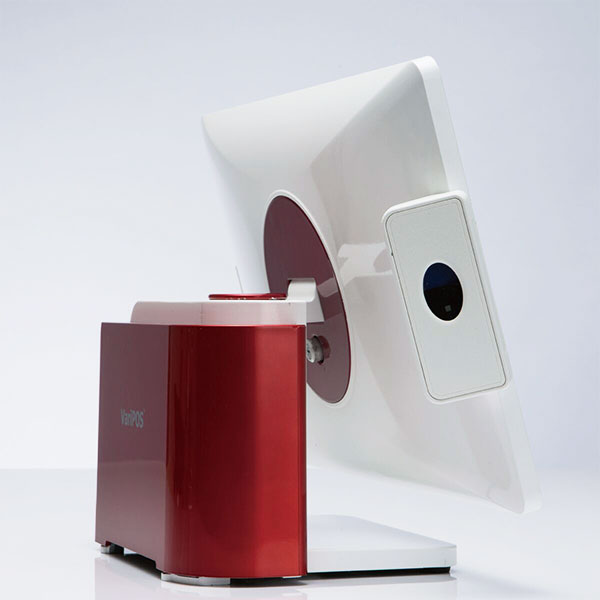

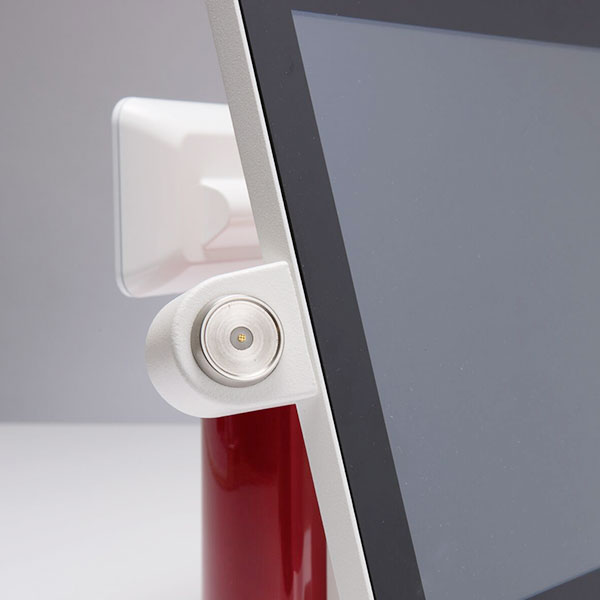

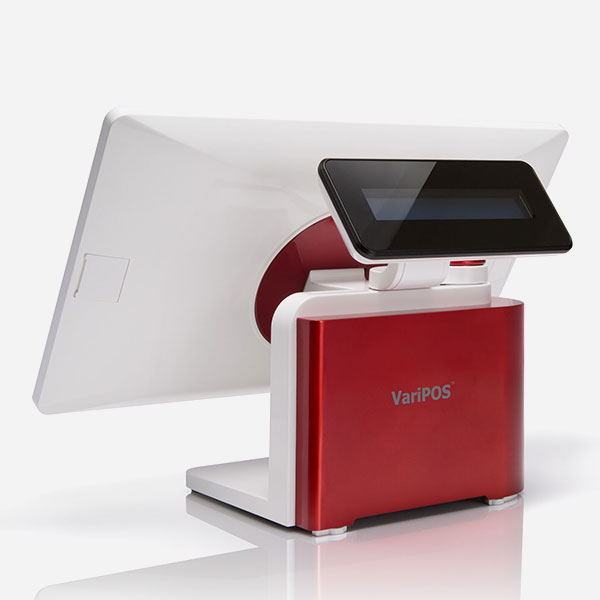

IVS 210 VariPOS Series
Touchscreen POS - Small Sleek & Smart
Description :
iCE IVS 210 Varipos Series features 14” 16:9 true flat wide P-Cap touch screen with superior Intel Bay Trail-T3735F Quad Core processor for matchless performance and efficiency. The flexibility offered by IVS 210 VariPOS integrates easily into the hospitality and retail sectors. In addition to the outstanding performance, VariPOS 210 uses top quality lightweight die-cast aluminium providing it a fine appearance for speciality stores and dining restaurants.Product Features:
- Integrated SD card local backup combined with disk imaging software.
- Peripherals compatibility: LCM, 10.1” 2nd display, VariPAD 2nd Cradle, MSR, iButton, Fingerprint, RFID
- Able to be driven by an external power bank for uninterrupted service.
- 1 x 24V, 1 x 12V Powered USB for retail peripherals.
- Optional color case to match the individual shop design.
|
Main Board |
|
|
Processor |
Intel® Baytrail-T CR Z3735F1.33GHz,Cache 2MB |
|
System Memory |
[Android] – 2GB DDR3L |
|
[Windows] -2GB DDR3L |
|
|
Display & Touch |
|
|
LCD Size |
14″ HD 16:9 TFT-LCD (LED Backlight) |
|
Brightness |
200nits |
|
Resolution |
1366 x 768 |
|
Touch Technology |
True Flat Projected Capacitive Technology |
|
eMMC |
[Android] – 32GB eMMC |
|
[Windows] -64GB eMMC |
|
|
SD |
1 port (support up to 64GB) |
|
I/O & Expansion |
|
|
DC Input |
1 x Mini Din 4P (DC 19V only) |
|
Cash Drawer |
1 x RJ-11 (12V or 24V(default)) |
|
LAN port |
1 x Gigabit Ethernet by RJ-45 |
|
USB port |
2 x USB 2.0, 1 x 12V_PUSB, 1 x 24V_PUSB |
|
COM port |
3 x RJ-48, RS232, Pin10(5V/12V/RI) |
|
Power Switch |
1 x power on / off switch button |
|
Speaker |
HD Audio, 1W Speaker x 1 |
|
OS Support |
Windows 10 IOT, Windows 8.1, Android 4.4.4 |
|
Power Adapter |
External adapter, DC Model:120 Watts, Voltage:+19VDC 6.32 Amax |
|
Compliance |
|
|
Certifications |
CE, FCC, LVD, RoHS, WEEE, REACH |
|
Protection |
IP66 on front panel |
|
Material |
Main Unit: Die-Cast Aluminum ; Other Cover: Plastic |
|
Color |
Silver-White & White-Red |
|
Dimension( Wx H x D ) |
358 x 144 x 254 |
|
Weight |
2.9Kg |
|
Environmental |
|
|
Operating Condition |
0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing |
|
Storage Condition |
-20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing |
|
Optional Accessories |
|
|
VFD/LCM |
LCM: 2×20 USB Type |
|
MSR |
Front, 3 tracks USB Type |
|
iButton |
USB Type |
|
Finger Print |
USB Type |
|
RFID |
USB Type, 13.56MHZ |
|
2nd Display |
10.1″ USB Type Resolution 1280 x 800 |
|
Power Bank |
Input 5V |
